Beijing Silk Road Enterprise Management Services Co.,LTD
6 Years
| Ask Lasest Price | |
| Brand Name : | OEM |
| Model Number : | |
| Price : | Negotiable |
| Certification : | CE , ISO |
| Delivery Time : | 15-20 days |
| Payment Terms : | L/C, T/T, Western Union, Paypal |
| Supply Ability : | 100pcs per month |
| Max applicable PCB size | 330*580mm | |||
| Max xy moving range | 585*620mm | |||
| Max z moving range | 16mm | |||
| Placementhead quantity | 4 | |||
| Vision on: 9000pcs/h | ||||
| Max mounting capability | Vision off: 7000pcs/h | |||
| Feeder Capacity | 64 (YAMAHA Feeder is available) | |||
| Applicable component | Smallest size: 0402 | |||
| Largest size: 16*16mm (Pitch 0.5mm) | ||||
| Max height: 5mm | ||||
| Visual camera | 5CCD cameras & 1 HD CCD camera | |||
| Power supply | 220V/110V | |||
| Net weight | 160kg | |||
| Machine Dimension | 1060*865*650mm | |||
| Packing size | 0.98CBM | |||

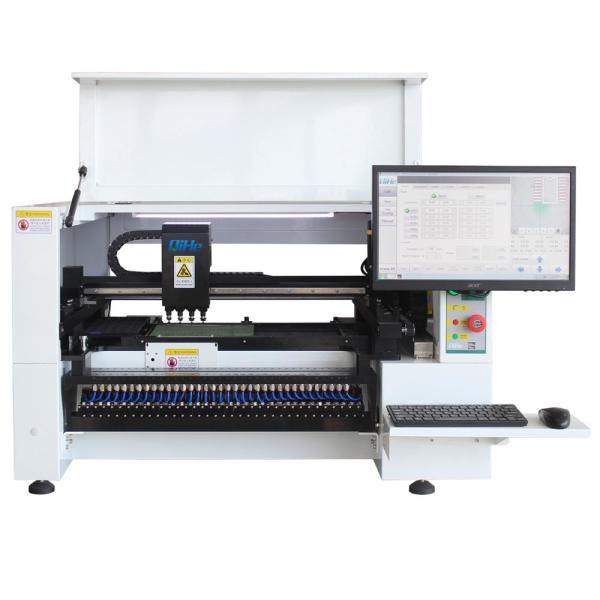

Main Features
1. Vision system: one down-looking camera. Four CCD cameras and one
HD camera.
2. Four placement heads can pick up and calibrate components at one
time.
3. Up to 64 feeder slots, Yamaha standard feeder is available.
4. Built-in computer mainboard, the monitor, key board and mouse
will ship with machine.
5. Video tutorials make you operate machine easily
6. Free to upgrade software and provide technology support for lif
|
|
