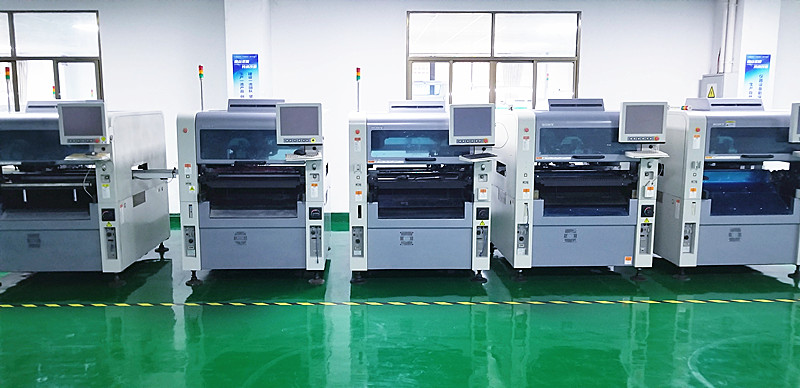

Automatic 12 Nozzles Chip Mounter Machine For LED Beads

1. The world's original rotating planet mount head, 12 suction nozzles, fast speed, actual output up to: 25,900CPH/h.

2. It is suitable for the high speed mounting machine with 1.2m LED beads. LED lamp bead patch artifact.

3. Small floor area, less electricity and gas consumption, low noise.

4. CCD camera recognition parts, unique image recognition system, accurate positioning and high mounting accuracy.

5. Original import, reliable quality.

Product Paramenters

Model	SI-F130	SI-F130AI	SI-F130WK
mounting speed	30000CPH/h	36000CPH/h	40000CPH/h
mounting accurancy	±30μm@μ	±30μm@μ	±30μm@μ
element size	0402～18mm	0201～18mm	0201～18mm
element thickness	Max:8mm	Max:8mm	Max:8mm
PCB size	50mm50mm-360mm1200mm	50mm50mm-360mm1200mm	50mm50mm-360mm1200mm
PCB thickness	0.5mm to 2.6mm	0.5mm to 2.6mm	0.5mm to 2.6mm
vision system	Flying HD visual recognition system	Flying HD visual recognition system	Flying HD visual recognition system
mounting head	12Nozzles / 45° Mounting head	12Nozzles / 45° Mounting head	12Nozzles / 45° Mounting head
feeders	48behind /48 front	48 behind /48 front	48behind /48 front
machine size	1220mm1400mm1545mm	1220mm1400mm1545mm	1220mm1400mm1545mm
machine weight	1560KG	1560KG	1560KG
voltage	AC 3 phase 200V±10%,50/60HZ	AC 3 phase 200V±10%,50/60HZ	AC 3 phase 200V±10%,50/60HZ
power	5.0KVA	5.0KVA	5.0KVA
air pressure	0.49MPA 0.5L/min	0.49MPA 0.5L/min	0.49MPA 0.5L/min
work environment	temperature15℃～30℃ ； humidity 30%～70%	temperature15℃～30℃ ； humidity 30%～70%	temperature15℃～30℃ ； humidity 30%～70%
work noise	35-65 decibel	35-65 decibel	35-65 decibel
correction model	Machine vision system, multi-point mark vision correction.	Machine vision system, multi-point mark vision correction.	Machine vision system, multi-point mark vision correction.
driver system	AC servo, AC motor	AC servo, AC motor	AC servo, AC motor
operation system	Chinese, English, Japanese operation interface (WINDOWS system control platform)
control model	automatic	automatic	automatic
