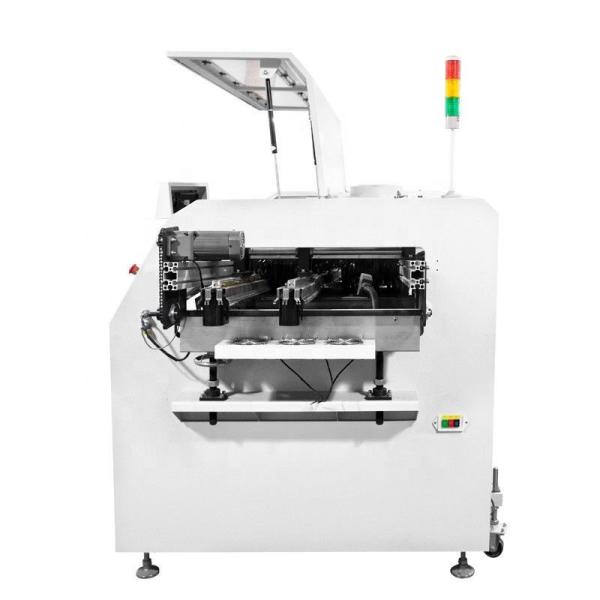

2600*1200*1700mm Dual Waves Preheating SMT Soldering Machine
1, Chinese and English man-machine interface, can be switched at
any time
2, Full touch screen plus PLC control, all parameters are set,
saved and recalled in the touch screen
3, With two temperature measurement , the temperature curve can be
tested with the temperature measurement line.
4, Brand controlling system like Mitsubishi, Schneider Omron etc
will warrant the stability of the machine
5, CE certificated
6, Entrance of machine, It can connect with inserting con veyor
directly
7, Stainless steel long shaft pin chain conveyor, never abrasion
8, Stepper motor for sprayer driving, sider/rail for sprayer
guiding Sprayer moving speed can be setin touch screen.
9, Moving speed will not be influent by air pressure.
10, Compare with air cylinder driving, it's moving quietly, stably,
less maintenance, longer lifetime.
11, Any parts contact with solder they are made of Ti(not plated
Tl, not cast iron pot) Just like solder pot impeller, wave tunnel,
wave nozzle, bolts and nuts etc. So to grantee the lead free
solder's pureness and kep the pot no eroded.
12, Cavesr apeathat at eftef mexdire
| Model | G-25K | G25T | G25C |
| Way To Control | Key +PLC | Touch Screen + Plc | Computer + Plc |
| Transport Motor | 1P AC220V 60W | ||
| Transportation Speed | 300-1200mm/min | ||
| PCB Max Width | 50-250mm | ||
| Transport Height | 750±20mm | ||
| Preheating Zone | Power: 6kw Length: 600mmThree-Stage Pid Control Temperature: (Room Temperature -250°) | ||
| Tin Furnace Heating | 15kw (Cast Iron Heating Plate) (Room Temperature -300°) | ||
| Preheating Method | Infrared/Hot Air | ||
| Tin Furnace Capacity | 280KG | ||
| Wave Number | Dual Waves | ||
| Wave Type | Turbulence first wave and Lambda 2nd wave | ||
| Wave Height | 0-12mm | ||
| Wave Motor | 3P AC220V 0.18KW*1PCS/2PCS | ||
| Claw Pump | 1P AC220V 6W | ||
| Cooling | Forced Centrifugal Blast Cooling | ||
| Pcb Transportation | L→ R(R→L) | ||
| Nozzle Moving Motor | Cylinder/Stepping Motor | ||
| Flux Storage Tank | 6 litres | ||
| Alcohol Capacity | 4 litres | ||
| Flux Pressure | 3-5Bar | ||
| Welding Angle | 4-6° | ||
| Power Supply | 3P AC380V 50HZ 63A | ||
| Total Power/Operating Power | 15KW/3.5KW | ||
| Machine Size | L2600*W1200*H1700mm | ||
| Weight | 800KG | ||
| Exhaust Air Volume Requirement | 15 cubic/min 2 (channel) | ||
1. Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in SMT production
lines, including SMT placement machines, reflow ovens, solder paste
printers and other SMT line assembly machines. Provide OEM & ODM
services. Please feel free to let us know your request.
2. What is the shipping method?
These are heavy machines. We recommend that you use a cargo ship.
But the parts used to repair the machine can be transported by air.
3. How is the warranty?
We support a one-year warranty. We will update the software for our
customers on a regular basis. If you have any questions during the
operation of the machine, please feel free to contact us. We will
help you in time.
4. What is your delivery date?
The delivery date is approximately 35 days after payment is
received.
5. What is your payment terms?
30% deposit in advance and 70% balance before shipment.
|
|
