Application
1. high precision semi-automatic
2. SMT stencil printer4. For PCBA solder paste printing

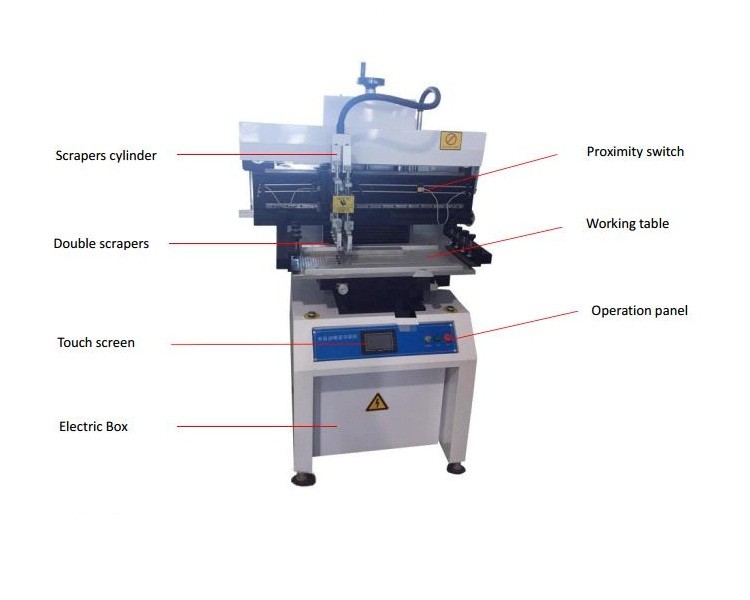

Main features:
1. PC control ,touch screen dispaly and menu operation interface
2. Floating scraper.similar to automatic printer, the scraper can
be floated freely up and down and can be adjusted automatically to
level with the steel grid.
3. The pressure of the scraper is adjustable .The pressure of the
scraper on the steel grid is adjustable according to the length of
the scraper.
4. The process of the stell gird removing from the PCB can be
adjustable from 0 to 5seconds
5. Use both of your hands to press the button to operate so that
the safety and reliability are ensured.
6. The stopping timeof the scraper at top left or bottom left, and
top right of bottom right,as well as the overall stopping time of
the steel gird at top or bottom can be independently set in the
touch screen menu.
7. The PCB can be localized and fastened by base hole , base side
,both base hole and base side ,and template localization.
8. Time can be displayed on the touch screen and the count of the
printing time can be recorded .
9. The scraper speed at left and right is adjustable and can be
stopped in emergency.
Printing area | 320×1200m |
Frame size | 370×1230mm |
baseplate size | 300×1150mm |
Baseplate thickness | 0.2-2.0mm |
Scraper speed | 0-100mm/sec |
Adjusting for table | Front/back±10mmR/L±10mm |
Air-pressure | 4-6kgf/cm2 |
Power | 100W |
Voltage | 220V,50 ~60/HZ |
Machine size | L1350×W900×H1650mm |
Weight | 270kg |
|
|
