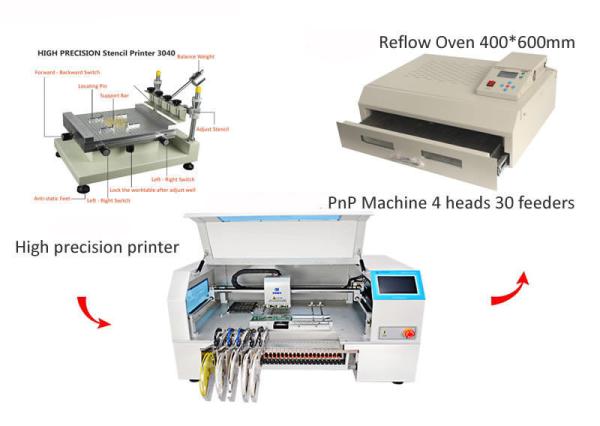

High Precision 4 Placements Head Benchtop SMT Line Machine
1. High precicsion stencil printer:
| Work table size | 300*400mm |
| Print size | 250*400mm |
| Max net frame size | 370*470mm |
| Printer way | manual |
| Thickness of the substrates | 0-80mm |
| The workbench adjust volume | 10mm, Horizontal Angle adjustment |
| Printing platform height | 220mm |
| repeated accuracy | ±0.01mm |
| locate mode | Benchmark or hole shape |
| Dimension | 540*370*350 mm |
| Packing size | 630*450*480mm |
| Weight | NW.25Kg GW.35Kg |
2. CHMT530P4 (4 heads + 30 feeders)
| Precision | ±0.015mm |
| Placement head | 4 heads |
| Feeding system | Support max 30pcs 8mm Pneumatic feeder (other options:
12,16,24mm,vibration feeder) |
| Vision detection | Double camera (up & down) |
| Motor control | · XY Axis stepper motor with encoder closed-loop control |
| Components leakage detection | Vacuum and visual detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | 7 inches industry screen |
| Operation system | Embedded Linux system |
| External air source | 0.5MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Dimension | 1050mm(L)×780mm(W)×500mm(H) |
| Compatible software | Altium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS…etc |
| Net weight | 125Kg |
3. Reflow Oven :
Effective Soldering max area: 400 x 600mm
Rated power: 2500W
Temperature Range: 0°C-280°C
Process cycle: 1~8 min
Voltage: 110V~240V
Frequency: 50Hz~60Hz
Product size: 684x504x225mm
Net weight: 25kg
Packing weight: 27kg
|
